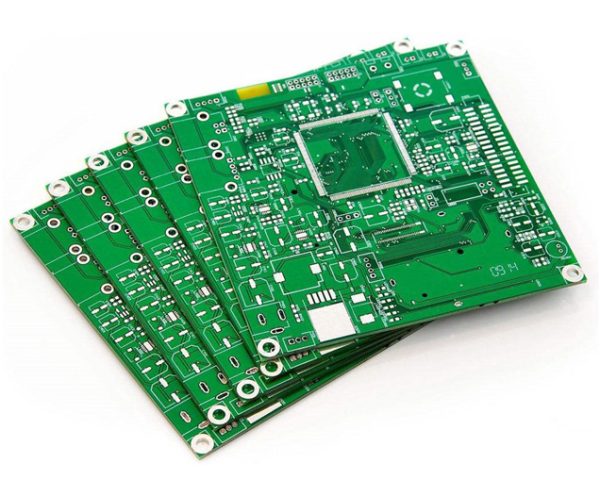

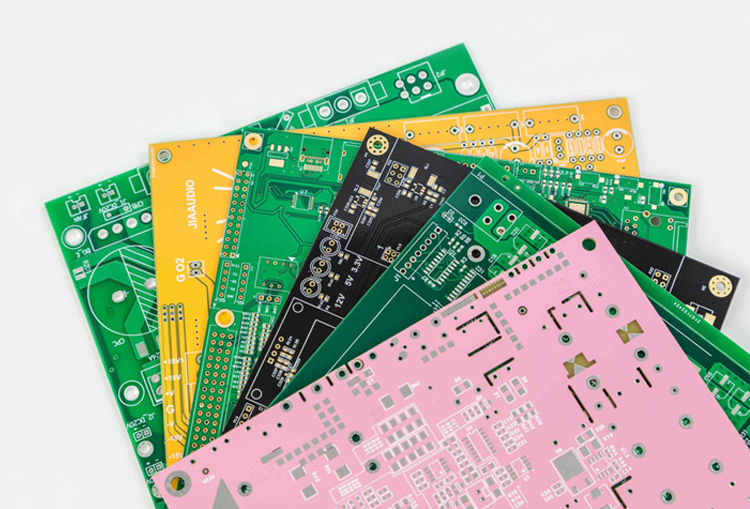

Multilayer PCB
Multilayer PCB (Multilayer Printed Circuit Board) is a printed circuit board composed of more than two conductive layers, which are separated by insulating materials (called dielectrics or prepregs) and arranged alternately throughout the structure.
What is Multilayer PCB

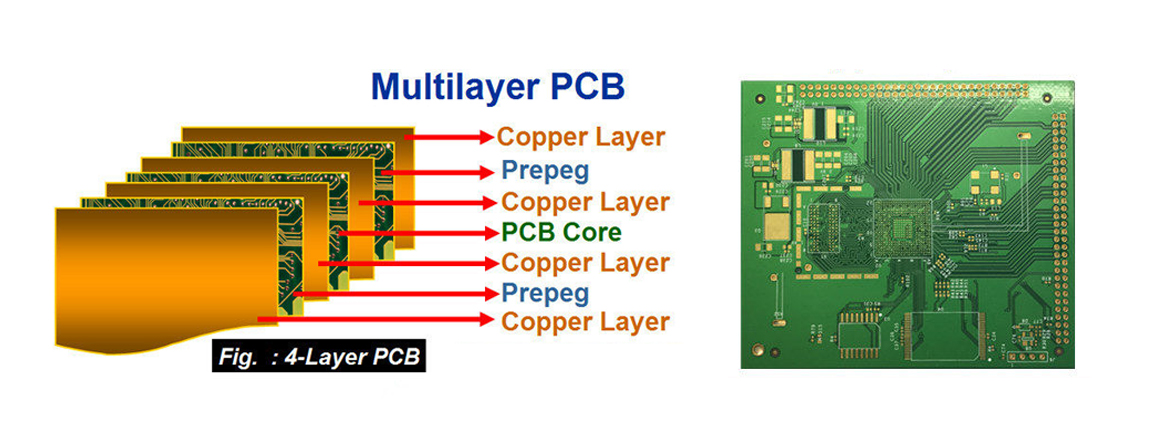

Multilayer PCB (Multilayer Printed Circuit Board) is a printed circuit board composed of more than two conductive layers, which are separated by insulating materials (called dielectrics or prepregs) and arranged alternately throughout the structure. Multilayer PCBs can contain three, four, six, or even more than ten or more layers of complex structures. This design enables the circuit board to achieve higher functional density and complexity within a limited space.
Lingkey: Your Multilayer PCB Board and Assembly Manufacturer
At Lingkey multilayer PCB manufacturer, we specialize in designing, producing, and delivering high-quality multilayer PCB boards to meet the growing demands modern-day industries. Our state-of-the-art manufacturing facility is equipped with the latest technology, enabling our engineers to produce a diverse array of multilayer PCB boards.These boards not only support complex circuit requirements but also perform efficiently and reliably for all kinds of projects.
Our multilayer PCB board solutions are meticulously engineered for high-speed and compact design applications, such as telecommunications, medical devices, and consumer electronics.This makes sure that our multilayer PCB board designs always provide optimum performance regardless of the complexity or scale of your project.
Furthermore, we pride ourselves on the following key advantages:
Why Choose Lingkey for Your Multilayer PCB Needs?
Our extensive experience as a multilayer PCB manufacturer means we can deliver multilayer PCB boards with superior thermal management, minimal electromagnetic interference, and enhanced reliability for high-speed circuits.
Partner with Lingkey and discover why countless customers trust us with their multilayer PCB board and multilayer PCB assembly needs. From the initial consultation to final product delivery, we’re committed to excellence every step of the way. Get in touch today to discuss your project, and let us show you why we are the go-to multilayer PCB manufacturer for quality and innovation.
Technical Capabilities
Offering
Finished board thickness (thinnest – thickest)
Minimum Hole Diameter
Minimum line width/spacing
Maximum board size
Impedance control
Surface treatment process
Processing materials
1-48 layers
0.008″ ~ 0.24″
6mil (0.15mm)
3-4 mil (0.076-0.10mm)
Single and double layer 22″x 43″ (550 x 1100mm) Multilayer 22″x 25″ (550mm x 640mm)
± 10%
oxidation resistant OSP, tin spraying
FR4 (Sangyi, KB, International), high TG (TG150, TG170)
