Chip On Board (COB) and Chip Packaging and Function: PCB and COB LED Guide
Chip-on-board (COB) is an advanced packaging technology fueling the evolution of today’s electronics. By attaching bare integrated circuits directly onto the PCB, engineers achieve incredible levels of electronic miniaturization, efficiency, and performance across countless applications—especially in LED technology. This in-depth article reveals how COB is transforming the way electronic devices are made, from the manufacturing process to the packaging method used, and why it delivers profitable insights for the electronic miniaturization future.
Introduction
Chip on board (COB) is an essential factor in the trend of miniaturized electronics and integration of electronic devices and components. The solution is chip-on-board when you need high-density circuitry, good thermal management and a minimized footprint – connecting chips to the board with ultra-short electrical paths. COB is a new packaging technology, in which each component is arranged on the board directly, resulting in a efficient electronic device with enhanced performance and reliability.
What is a Chip On Board PCB?
Chip-on-board (COB) is a process where bare integrated circuits (silicon or semiconductor chips) are placed directly onto a substrate. The chip is connected to the substrate via an adhesive layer of conductive material or conductive solder balls in a TA bond. This packaging method allows discrete integrated circuits to be assembled on the surface of a circuit board, enabling the construction of high-performance modules without the bulk and complexity of multi-chip ceramic or plastic packages.
At Linksys, every step of the COB process, from surface cleaning to chip placement and epoxy encapsulation, is performed under strict control and monitored through AOI, X-ray, and functional testing to ensure long-term reliability.
Key Differences Table
Feature | Chip-On-Board (COB) | Traditional Packaging Technology |
Die placement | Directly onto the PCB | In a ceramic/plastic package |
Signal paths | Very short | Longer |
Size and height | Extremely low-profile | Bulkier |
Board preparation | PCB board is prepared | Not required |
Integration level | High | Moderate |
Electronic miniaturization insights | Advanced | Limited |
How Chip-On-Boards are Made

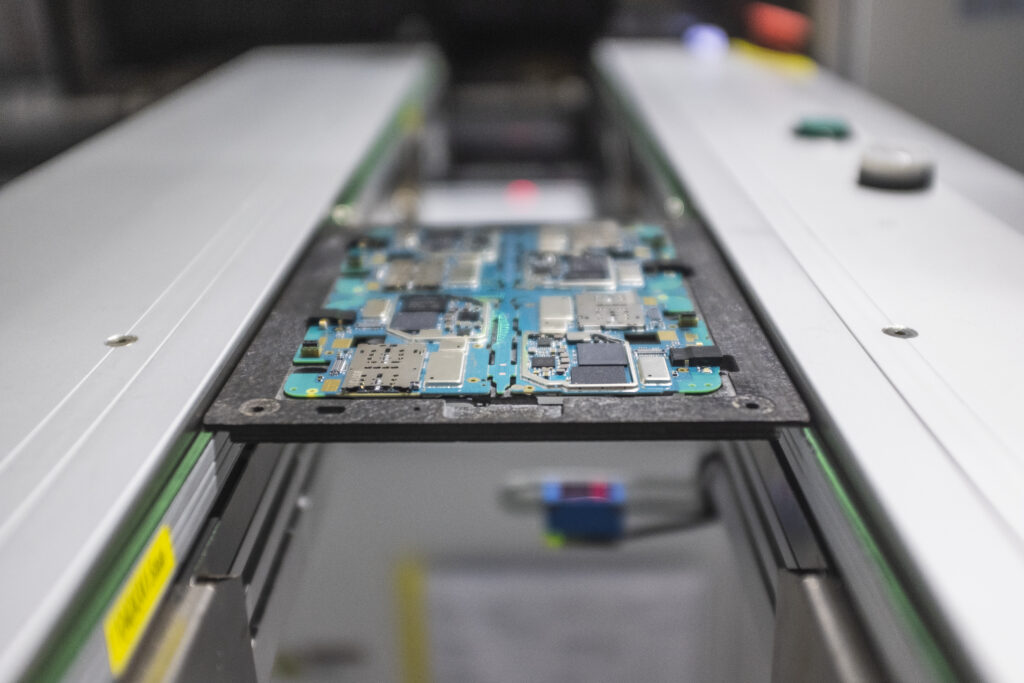

Manufacturing Process Overview
The COB fabrication process is a series of tightly controlled steps that marry circuit board fabrication techniques with die handling. An in-depth knowledge of COB allows for best integration, least signal loss and best heat sinking. PCB board is processed by cleaning board surface and then with a conductive material where chips are bonded.
The surface of the board is usually ceramic or high quality FR4 and is treated for good adhesion and best electrical bonding.
Detailed Chip On Board Packaging Process
Step 1:Crystal Expansion
The wafer containing multiple chips is expanded so that chips are directly accessible for placement.
Step 2:Adhesive Application

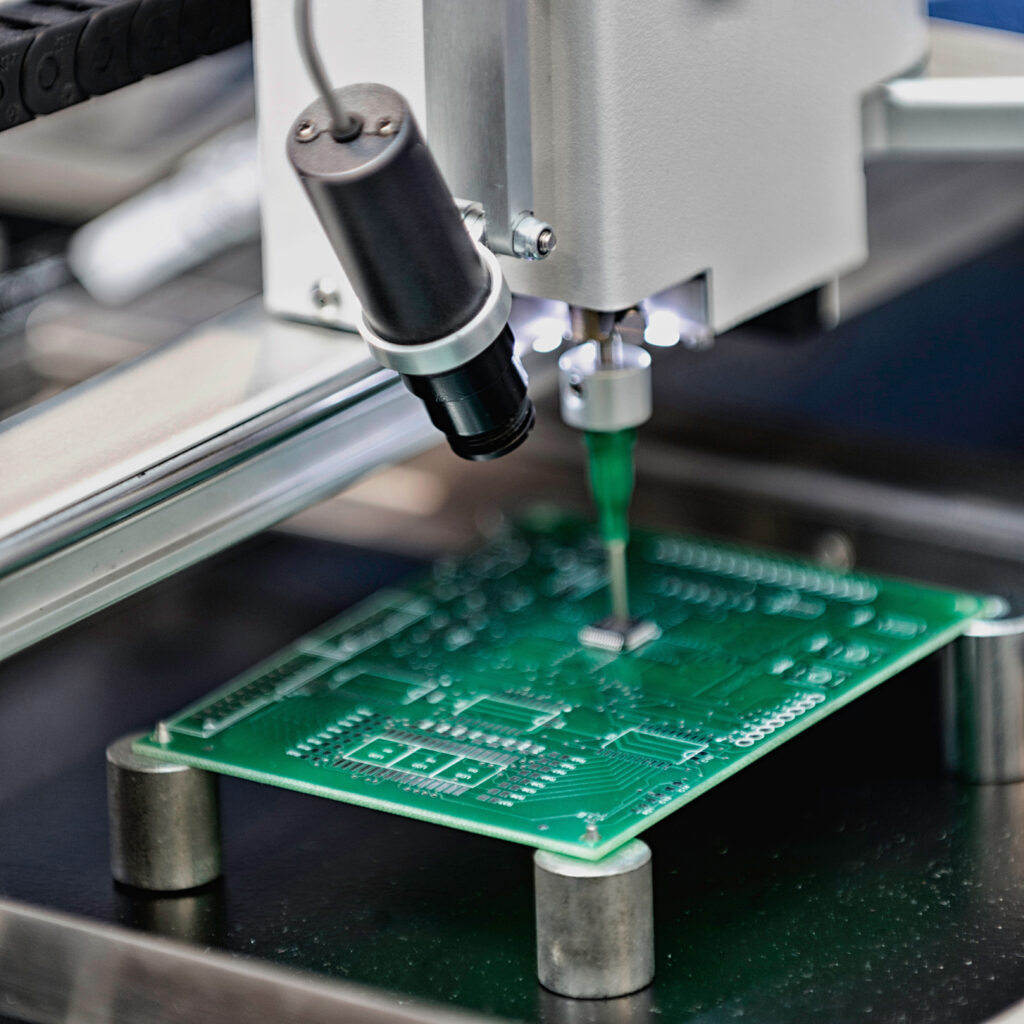

An adhesive layer of conductive material like silver paste or epoxy is dispensed on the PCB, where the chip will be attached.
Step 3:Placing and Piercing the Chip
Using welding machines and packaging machines, the bare die is carefully placed on the board with the use of precise pick-and-place systems.
Step 4:Thermal Cycling and Curing
The assembly undergoes thermal cycling, securing adhesives and ensuring strong bonding.
Step 5:Chip Attachment
The material where chips are bonded is checked for alignment accuracy—chips are truly configured directly to the PCB layout.
Step 6:Drying
The process includes drying and curing, an essential part of the packaging method used to prevent movement.
Step 7:Wire Bonding and Solder Bumps
Fine wires or solder bumps connect bonding pads with board traces, forming precise electrical paths for data and power.
This stage may use fine wires or conductive solder bumps to minimize resistance.
Step 8:Pre-Test/Functional Testing
Boards are tested for basic function to identify any early defects.
Step 9:Encapsulation with Epoxy or Plastic
A clear epoxy coating, epoxy encapsulation, or plastic encapsulation is applied to cover the chip and protect the chip against moisture and contaminants.
Step 10:Final Curing
The encapsulant is cured for rigidity and environmental stability.
Step 11:Post-Test/Inspection
COB inspection tools and functional tests ensure modules are ready for the next assembly stage.
Features and Advantages of Chip On Board Technology
Chip on board technology unlocks powerful benefits for electronic miniaturization:
- Ultra-compact Design:Compact electronic devices are made possible by assembling chips directly onto the PCB without intermediary packages.
- Fewer Signal Losses:Traces by using fine wires directly link chips to board, cutting resistance and capacitance.
- Good Thermal Management:COB improves heat flow from die to board, ideal for LED modules, power circuits, and high-density boards.
- Lower Material Cost:Eliminating additional welding machines and packaging steps saves time and resources at scale.
- High Reliability:Encapsulation coating to protect the chip wards off contaminants and reduces mechanical failure.
- Efficient Integration:More electronic components integration in tighter spaces.
- Board technology also has disadvantages, such as the need for specialized welding machines and packagingprocesses, making rework or repair more complex than in SMT assembly.
Common Advantages and Limitations
COB Advantages | COB Limitations |
High density (HDI possible) | Challenging to repair |
Minimal signal path | Need for skilled labor |
Excellent thermal properties | Extra process steps |
Enables miniaturization | Disadvantages such as the need for additional welding machines |
What are Chip-On-Board LED Lights?
Chip-on-board LED lights are at the core of she modern LED technology today, which uses COB technology to place multiple bare integrated circuits (LED dies) directly on to a substrate. The result is a space-efficient, reliable, and bright light source that can be used effectively in many applications and in a variety of colors.
Why COB is Better for LED Modules
- Uniform Illumination:COB improves light uniformity for display and architectural lighting.
- Superior Heat Dissipation:Direct attachment and encapsulation deliver good thermal management for high-output lighting.
- Low Profile:Ceramic or PCB substrates keep modules thin and lightweight.
Other Advantages of a Chip-On-Board LED
- Reduced glare compared to SMD LEDs.
- Smaller and simpler assembly compared to traditional packaging.
- Easy to integrate into compact circuit designfor wearables and displays.
Other Applications of Chip-On-Board Technology
Chip-on-board isn’t just for lighting. It is pivotal in numerous application fields:
- Mobile devices: Maximizes functionality in restricted spaces using COB packaging process and minimal signal paths.
- Power electronics: For motor controllers and converters where electrical paths must be short and robust.
- Medical Devices: Like dialysis modules, requiring biocompatible epoxy or plastic to protect the chip and ensure patient safety, chip-on-board technology also enables highly reliable, miniaturized medical modules. The encapsulation—using either epoxy or plastic—prevents moisture and contaminants from affecting sensitive electronics within life-critical equipment.
- Wearable Electronics: The trend toward ultra-thin smartwatches, fitness trackers, and medical patches is only feasible with COB. This innovative packaging technology lets individual components be configured on the board without bulky traditional packages, enabling seamless designs that are both lightweight and durable.
- Automotive Electronics: From LED headlamps and dashboard displays to sensor modules for advanced driver-assistance systems (ADAS), COB assembly contributes to good thermal management and reliable operation, crucial for automotive safety and performance.
- Industrial and IoT Devices: Factories demand rugged electronics. COB ensures higher reliability, especially in sensors, control modules, and wireless communication units, thanks to its protective encapsulation and robust direct chip-to-board connections.
Comparison With Other Packaging Methods
COB vs. Surface Mount Technology (SMT)
Although surface mount technology (SMT) is widely used and versatile, chip-on-board has a number of important benefits-bit more so for high end applications that require electronic miniaturization and duct high-reliability packaging. Here’s a side-by-side look:
Feature | Chip-On-Board (COB) | Surface Mount Technology (SMT) |
Chip Placement | Bare chips directly onto the board | Packaged ICs onto the board |
Packaging Height | Ultra-thin, compact | Taller due to packaging |
Board Preparation | PCB board is prepared, cleaned, and adhesive applied | Minimal preparation |
Signal Loss | Fewer signal losses; shorter electrical paths | Moderate; longer paths |
Heat Management | Good thermal management, efficient dissipation | Adequate but less efficient |
Flexibility/Repair | Less reworkable due to encapsulation | Easily reworkable and replaceable |
Equipment Needs | Need for bonding, welding, and packaging machines | Standard SMT lines only |
Cost for Volume | Profitable at scale, lower packaging cost | Higher for ultra-high density |
Miniaturization | Enables cutting-edge electronic miniaturization | More limited by package size |
Advantages of COB Over SMT:
- High-density electronics integration
- Reduced electrical resistance and inductance
- Enhanced heat conduction pathways
- Smaller, lighter final products
Disadvantages of COB:
- Repairing or replacing defective chips is challenging because they’re encapsulatedand directly attached to the PCB
- Requires additional welding machines and packaging machinesfor wire bonding and encapsulation
- Not as suitable for rapid prototyping or frequent design changes
Quality Control, Reliability, and Testing in COB
Comprehensive quality assurance is vital in COB assembly to ensure effective electronic devices and long-term reliability. The process integrates meticulous cleaning, functional testing, and inspection at every stage.
Key Quality Control and Testing Steps:
- Board Surface Preparation:Critical for bonding strength. The cleaning board surface and applied adhesive stage ensures no contaminants affect adhesion.
- Wire Bond Integrity:Tests on board traces by using fine wires or conductive solder bumps guarantee dependable electrical paths.
- Encapsulation Coverage:Inspection of the clear epoxy coating or plastic cover to make sure it fully protects the chip.
- Functional and Thermal Testing:Simulate end-use scenarios, including thermal cycling, to verify that chips withstand operational conditions without degradation.
- Automated Inspection: Use of AOI (Automated Optical Inspection) and X-ray inspection to detect hidden defects in bonding or encapsulation.
Future Trends in Chip On Board Technology
The future for chip-on-board technology is bright, especially as compact electronic devices are made to support the growing Internet of Things (IoT), wearables, and edge computing. Let’s look at the main directions:
- Flexible and Stretchable Boards:Research continues into substrates beyond ceramic or FR4, such as stretchable polymers, enabling electronic devices that wrap or bend into new applications.
- Smarter Encapsulation:Advances in epoxy coating and UV-curable plastic encapsulation will increase protection and reliability—ideal for harsh environments or biomedical uses.
- Automated, Turnkey PCB Assembly:Machine intelligence is optimizing every stage, from cleaning and chip placement to functional testing and packaging.
- Hybrid Integration:Combining COB with other advanced packaging, including flip-chip and integrated passives, for even higher functional density.
- Sustainability Focus: The push is on to reduce electronic waste with processes that minimize unneeded materials and prioritize recyclable options.
Frequently Asked Questions About Chip On Board
Why should I use chip-on-board instead of traditional packaging for my electronic project?
How are chips attached to the PCB in COB?
Can COB technology be repaired or reworked?
What kind of equipment is required for COB manufacturing?
Is CHIP on Board used only for LEDs?
Conclusion: Is Chip On Board Right for Your Application?
Chip-on-board technology is the basis for the next wave of electronics miniaturization. If your roadmap calls for tight control integration,robust reliability, and superior heat dissipation andsignal performance, this advanced packaging technology couldbe the right choice. Whether you’re working on the next LED array, a next-gen wearable, or small form-factor automotive sensors, the COB packaging process provides valuable lessons for the future of electronic miniaturization.
Whether your application is miniaturized, thermal sensitive or high power density COB assembly, LingKey’s production capability provides a great engineering support and production partner for volume production and volume production.
Key Takeaways:
- COB is ideal for compact circuit designsand advanced LED modules.
- The packaging technologyexcels in signal integrity and thermal performance.
- Setup costs are justified by scale and performance needs, but be aware of board technology’s disadvantages, including more complex rework.
- Consult with experienced COB assembly providers to ensure your design leverages all the benefits and avoids common pitfalls.
