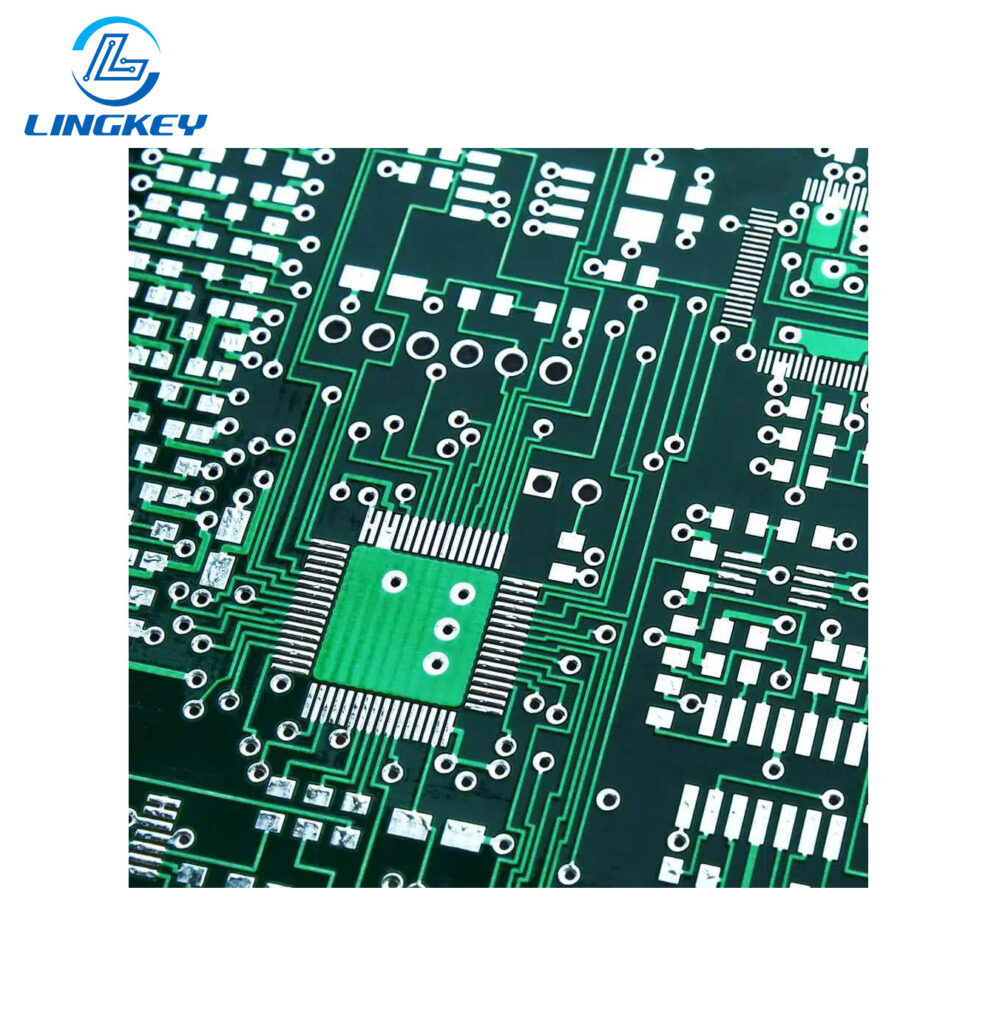

Immersion Silver
Immersion silver is a widely used PCB surface finish technique based on a displacement reaction that applies a thin layer of pure silver on the copper surface. Good conductivity, solder ability, and electrical properties of silver make immersion silver to be one of the best finishes for high speed signals and high frequency applications.
Compared with conventional technology, immersion silver has the advantages of simple process, high conductivity and good surface flatness, and can be used as an alternative surface finish between ENIG and OSP.
What is Immersion Silver?
Immersion Silver (ImAg) is a surface finish method in which silver is chemically deposited over the copper in PCB copper pads through a displacement reaction, which results in a uniform and dense silver layer on the PCB. The thickness of the silver layer is usually between 0.1 and 0.4 μm, which sufficiently shields the copper from oxidation and still has good conductivity and solderability.
Because it lacks a nickel barrier layer, immersion silver adds no extra loss to the signal and is thus a good choice for high-frequency and high-speed applications.
Core Advantages of Immersion Silver
Excellent Solderability
The nickel over copper immersion silver surface has good wetting, which greatly enhances the quality of solder joint and which can be applicable to automatic production of SMT production and high reliability of soldering.
Ideal for High-Frequency and High-Speed Signals
As the over-plating is without any nickel layer, it has no impact on the impedance and does not cause any signal loss, which make it very suitable for RF modules, high speed links or sensitive analog circuits.
Outstanding Electrical Conductivity
Silver is a superior conductor and provides a stable electrical contact which makes it the preferred surface finish for high speed data lines, sensitive signal path and sensors circuits.
Environmentally Friendly Process
The complete roHs-compliant and lead-free process of the immersion silver deposition is chemically stable and is a greener solution that fulfills the green manufacturing the industry of today electronics requires.
Good Storage and Protection
Immersion silver can adequately shield the copper pads for a limited duration and offer a barrier to oxidation due to air contact, also resulting in good assembly performance.
Typical Application Areas
- RF communication modules (Wi-Fi, Bluetooth, RF front-end, etc.)
- High-speed data links (servers, switches, base stations)
- Smart devices and IoT products
- Automotive electronics, ADAS, and radar-related circuits
- Medical electronics and high-precision measurement instruments
- High-frequency analog circuits and sensitive signal path designs
Immersion Silver Signal Integrity Profile (Engineering Perspective)
Electrical Behavior at High Frequencies
In high-speed and RF PCB layouts, surface finish selection has a direct impact on signal integrity. Immersion silver offers a direct copper/silver contact without the nickel barrier layer which is typical for ENIG finishes. This simplicity in construction decreases the impedance mismatch at pad transitions, and so also the conductor loss.
From a rfengineering perspectiveism, immersion silver has some measurable benefits under skin-effect dominated current flow, such as svurface conductivity is important.silver’s better conductivity results in less insertion loss and greater phase stability, particularly in the GHz range signal paths, making it ideal for:
- Controlled-impedance transmission lines
- RF front-end modules and antennas
- High-speed serial links and backplanes
- Sensitive analog and mixed-signal designs
This performance profile situates the immersion silver finish as the finish of choice when the electrical performance is more critical than the long-term cosmetic appearance.
LingKey’s Immersion Silver (IAg) Manufacturing Capabilities
At LingKey, we apply the standard industry IAg process, to guarantee the best silver thickness control, surface uniformity and solderability. Equipped with modern production facilities and strict quality control system, we can satisfy various manufacturing requirements from high-frequency/high-speed boards, precision analog boards to mass production consumer electronics.
We offer:
- Stable and uniform silver deposition, suitable for high-frequency and high-speed signal applications
- High-quality pad protection to enhance soldering reliability
- Strict oxidation control for improved storage durability
- Manufacturing processes that support complex stack-ups and precision designs
- Reliable end-to-end delivery, from prototypes to mass production
Select LingKey for better signal integrity, easier soldering and longer product life in our immersion silver PCBs.
