Introduction
If you’ve been curious about what controls the smart operation, cooling cycles, and energy efficiency of your home appliance, it’s the refrigerator pcb (Printed Circuit Board). This advanced electronic part is the heart of the refrigerator, and a central point within the control of the refrigerator, and the main functions that keep your food fresh and safe.
Modern refrigerators have evolved with PCBs in modern appliances now managing sophisticated logic, remote controls through smartphone apps, higher energy efficiency, and even Internet of Things (IoT) connectivity. Knowing the PCB’s function in a refrigerator particularly its circuit board at the back of refrigerator is important for effective maintenance and troubleshooting.
What Is a Refrigerator PCB?
A refrigerator PCB board is also known as the main control board, refrigerator control board. This electronic component acts as the brain for every core function and operation of the refrigerator. It receives signals from multiple sensors within the fridge and uses rest of the components such as compressor, fan motors, evaporator etc to influence the flow of cold air within the fridge.
The PCB in a refrigerator is far more advanced than in the past. While early boards could only handle simple functions such as start and stop cycles, today’s multi-layer designs run complex logic for smart cooling, diagnostics and user interface management. The board is generally concealed inside a housing either at the back of the refrigerator or under the control panel on the top or front surface.

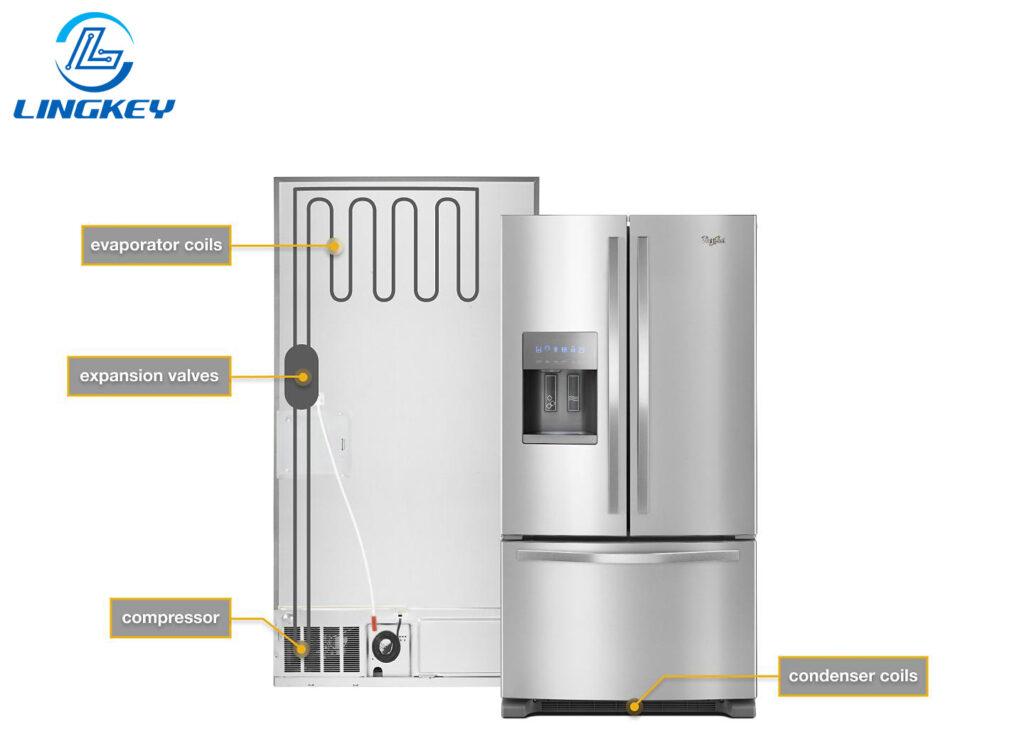

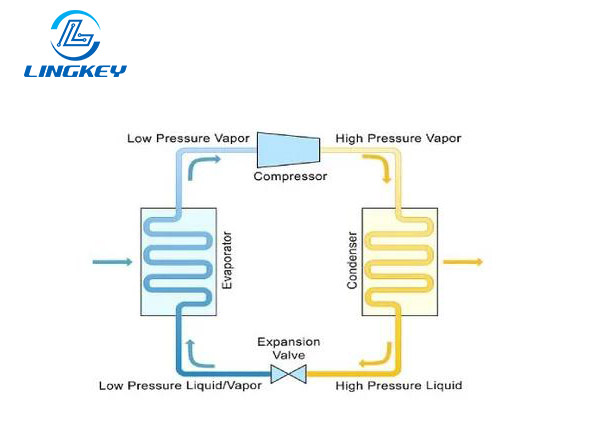

Core Functions of the Refrigerator PCB
The refrigerator PCB controls the essential system that maintains the appliance running smoothly.The following are the important features that the PCB plays:
- Temperature Control:Monitors the temperature of refrigerator and freezer compartments from internal temperature sensors to keep accurate temperature and cold air levels.
- Compressor Management:Signal to start and stop the compression based on temperature information and user settings.
- Defrost Cycle Management:Controls the defrost heater and signals when ice buildup on evaporator needs attention to allow for an efficient defrost cycle.
- Fan Operation:Control the fan by making cold air flow inside the refrigertor to cool it evenly.
- User Interface Components:With the control panel, LEDs and display units for a fluid—user experience.
- Remote Control & IoT:Wi-Fi interface for smartphone app control and remote diagnostics.
- Energy Efficiency:A track and adjusts cycles to optimize energy use with the assistance of adaptive algorithms.
Quick List: Key Functions Managed by Refrigerator PCB
- Automatic distribution of cold air for freshness
- Handling compressor operation and defrost heater
- Regulation of LED lighting and display
- Control of alarms and safety signals
- Smart home integration using Wi-Fi/Bluetooth and smartphone apps

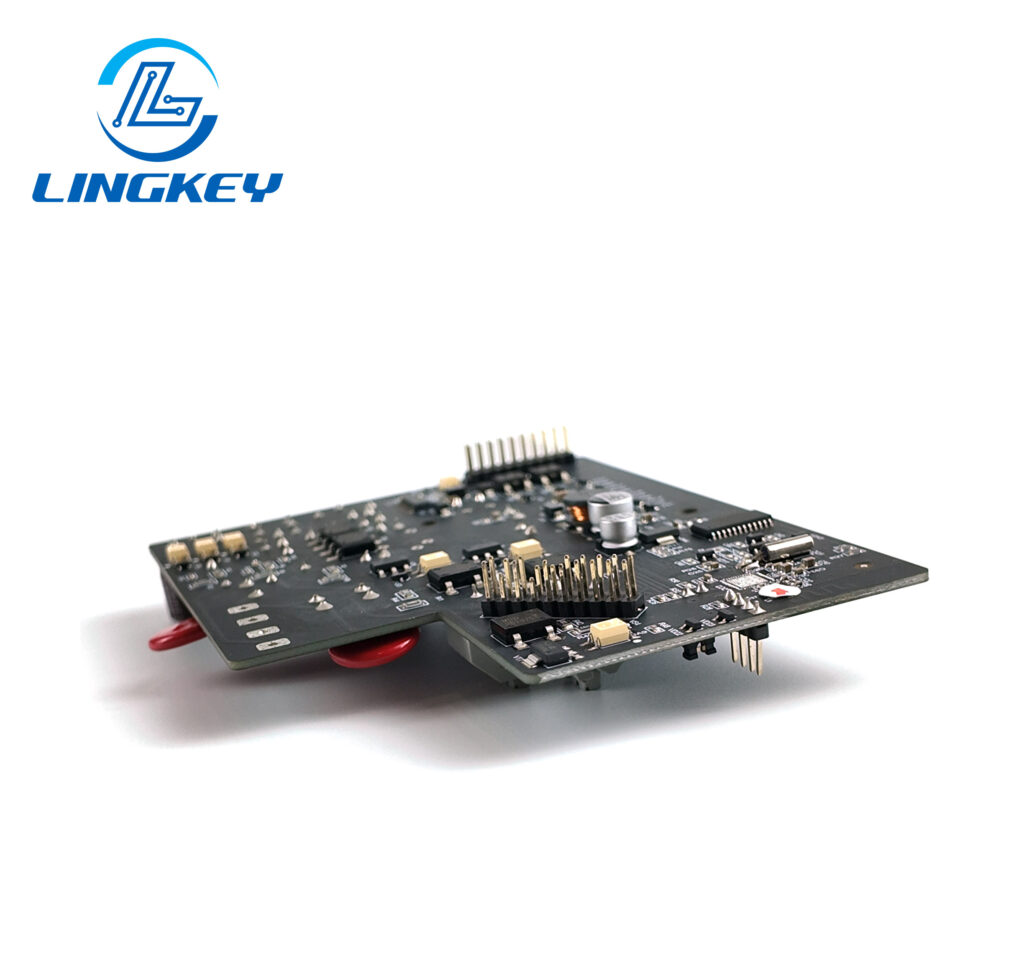

Key Components of Refrigerator PCB
Knowing the components of the refrigerator PCB is necessary to diagnose and/or upgrade them. These multilayered boards carry all kinds of essential circuits:
Component | Description |
Microcontroller Unit (MCU) | The main processor; interprets data from various sensors and makes real-time decisions |
Temperature Sensors | Located inside the refrigerator, they report conditions back to the PCB for cooling adjustments |
Humidity & Door Sensors | Manage moisture levels and alert the PCB if doors are left open |
Relays and Switches | Allow the PCB to control high-power devices like the compressor and fan motors |
Connectors and Interfaces | Supply power/data and connect all electrical components to the main board |
Power Conversion Circuitry | Converts AC from the wall into DC used by sensitive PCB components |
Display & LED Drivers | Control panel displays, interior LED lighting, and status indicators |
Alarm and Safety Modules | Trigger warning alerts for abnormal conditions or errors |
The refrigerator control board, hence at the “center of the refrigerator,” and its electronic functioning.
Internal Structure and PCB Design
A fridge PCB’s internal structure is a wonder of modern science. Premium designs employ multi-layer (typically 4 to 8 layer) FR-4 boards to separate high-power and logic lines for tight control and reduction of electromagnetic interferences.
Highlights of Modern Refrigerator PCB Design:
- Multi-layer architecture: Improve the performance, signal integrity, and robustness to electrical noises.
- Protective coatings: Moisture and dust proof layers are required as the PCB board is typically located in a dust and debris prone environmentat the back or inside the refrigerator.
- Eco-friendly Materials: High quality manufacturers use the RoHS lead free, recyclable material for the board.
- User Interface Components: The interface is integrated directly onto the motherboard and provides methods for touch control, LED indicator handling, and voice assistant connectivity.
Smart Features and Future Trends in Refrigerator PCBs
Upgrading the refrigerator circuit board enabled a variety of smart and eco-friendly features:
- IoT and Wi-Fi Integration: Users are able to keep an eye on and manage the fridge from a mobile application, with notifications, diagnostic tools and the ability to change its settings.
- Remote Control: The control panel can often be accessed remotely as well, allowing the refrigerator to adjust to various environments and users.
- Smart Home Integration: Thanks to home automation, your refrigerator is now simply another device in your connected ecosystem.
- Energy Efficiency Improvements: Advanced PCBs modify cycles according to the user’s habits, ambient temperatures and door opening frequency.
- Diagnostics and Predictive Maintenance: The PCB collects sensor information and maintenance is ordered or faults signaled in advance of breaking down via adaptive procedures.
Refrigerator PCB Price Overview
Factors Affecting Refrigerator PCB Price:
- Brand and Model: High-end models and those from OEM with more advanced control settings are pricier.
- Design Complexity: Multi-layer smart PCBs with data networking are more expensive than plain boards.
- Features: Internet connectivity, diagnostics and sensor compatibility are boosting prices.
- Supplier/Manufacturer: ISO certified vendors guarantee quality, but can have a higher cost.
Type | Features | Average Price (USD) |
Basic PCB | Standard control of the refrigerator | $50–$120 |
Smart Fridge PCB | Wi-Fi, IoT, diagnostics | $120–$250+ |
Third-party PCB | Replacement parts, fewer features, basic fit | $40–$100 |
Custom/Commercial PCB | Industrial-grade, intelligent function | $200–$500+ |
Signs and Symptoms of Refrigerator PCB Failure
Refrigerator control board failure detection is very important to keep the refrigerator running. Here are some major signs:
- Loss of Temperature Control:The cause of cold airflow that cannot be controlled in the fridge or freezer is often due to wrong sensor readings or stuck relays.
- Erratic Start and Stop:The compressor turns on and off unevenly, causing fluctuations in the cold air that may be supplied and food damage.
- UI & Control Panel Issues:Unresponsive control panel or inconsistent LED lighting and error messages.
- Fan and Defrost Malfunctions:Uneven cold air distribution and visible frost on the evaporator as a result of stop controlling the defrost cycle.
- Frequent Alarms or Error Codes:The PCB receives mixed signals from multiple internal and external sensors or
Common Issues with Refrigerator PCBs
A number of things can cause your fridge circuit board or control board to go bad. It is important to know these common problem areas for efficient refrigerator control and life.
Power Surges and Voltage Fluctuations
Sudden spikes in electricity, like those generated by lightning or power fluctuations, could potentially harm delicate electronic components on the pcb of the refrigerator. Voltage surges may cause random resets on the board circuitry or permanent damage to the circuit of the board, this could make the refrigerator to run erratically and in some cases the main control board to go bad.
Component Degradation
After some time, electronic components on the PCB, such as capacitors, relays, connectors, may degrade. This is particularly the case in situations where the PCB is subject to heat, moisture and dust and other particles collects at the rear of the refrigerator. Degraded components can cause intermittent failures or a total failure.
Environmental Factors
Moisture, condensation or dust buildup on the PCB may lead to short circuit or rusting. Because the board is usually in an open-frame position, it is essential to maintain it clean if you want to have a reliable refrigerator circuit board. Modern boards are covered with moisture-proof seals, but inspection and cleaning are recommended.
Wiring and Connection Issues
Bad wiring, loose connectors or bad solder joints can cause signal loss between the control board and the different sensors, relays, or user interface elements. These connections fail to communicate properly, interfering with the flow of cold air, and the control of the functionalities of the fridge, causing them to cool unevenly, and compressor and fans running start-stop sporadically.
Electromagnetic Interference
The increase of the devices in the home appliance environments, electromagnetic interference (EMI) could cause disruption of data communication on the refrigerator PCB. It is true that properly designed multi-layer boards will take care of EMI but there could be other problems with old or poor quality PCBs.
Troubleshooting and Repairing Refrigerator PCBs
Accurate Diagnosing and Repair are required to put a refrigerator back in service.So here’s the canned practical troubleshooting approach:
Diagnostic Tools and Techniques
- Digital Multimeter:For measuring voltage and continuity on electronic components and connectors.
- Visual Inspection:Check for blackened areas, bulging capacitors, corrosion or dust accumulation on the control board.
- Built-in Diagnostics:Use the smart panel of the fridge or the phone apps (if applicable) to check error codes or sensor status.
- Manual Testing:Unplug and test major components (such as the compressor relay) to locate failures on the pcb.
Repair Tips
- Carefully clean dust and debris from the board using a soft brush and air blower.
- Re-solder loose or cracked joints.
- Replace faulty relays, capacitors, or connectors if you have electronic repair experience.
- If damage is extensive, replace the entire refrigerator circuit board with a compatible part.
Preventive Maintenance Tips
- Keep the area around and behind the refrigerator clean and dry.
- Use a reliable surge protector to guard against power fluctuations.
- Schedule annual maintenance and inspection, especially in high-humidity environments.
Step-by-Step Refrigerator PCB Replacement Guide
Changing a fridge PCB is quite a precise job. This guide on replacement will help you enhance control of your refrigerator and have a better performance.
- Unplug the Appliance:Safety first—disconnect from main power.
- Access the PCB:Locate the PCB board usually at the back of the fridge or on the inside of the fridge behind the control panel. Remove the protective jackets.
- Document Wiring:Take clear photos or label the connectors and wire positions so you don’t get them mixed up when you put it all back.
- Disconnect Connectors:All connectors and wiring harnesses connected to the PCB are safely unplugged.
- Remove the Old PCB:Unscrew and gently remove the board. Inspect for physical damage, if any.
- Install the Replacement:Align and install the new PCB Connect all your wiring as per your references.
- Reassemble Covers:Replace any protective covers and secure with screws.
- Power On and Test:Plug the fridge back in and watch its start stop cycles and control panel/LED indicator, to be sure all functions of the fridge have been restored to normal.
How to Choose the Right Replacement Refrigerator PCB Board
Selecting appropriate replacement parts for your refrigerator circuit board is the key factor to consider for compatibility and safe operation.
Key Points:
Regardless always check the model and serial number to make sure refrigerator is matched to right PCB in fridge.
Choose OEM or ISO certified boards for reliability, proper integration with different types of sensors and full compatibility of features with your home appliance.
For the smart refrigerator, verify Wi-Fi, Bluetooth, and remote control functionalities are supported by the new PCB.
High-end boards are usually designed to allow for multi-layer control, so compatibility goes beyond just the physical size — think about firmware and software support as well.
Consideration | Why It Matters |
Exact Fit & Features | Ensures all intelligent functions and user interface |
Manufacturer Support | Access to updates, troubleshooting, and warranty |
Smart/Home Integration | Maintains control via smartphone apps and remote access |
Future-Proofing | Supports updates in IoT and advanced control panel |
Your Trusted Refrigerator PCB Manufacturer: Why Choose LingKey
LingKey is a professional refrigerator PCB & smart appliance control board manufacturer with high quality, provide:
- ISO-Certified Manufacturing:Ensure the safety, life and reliability of electronic components.
- Advanced PCB Design:Employ the multi-layer high-density architecture to strengthen the control of the refrigerator, smart home environment.
- Custom Solutions:Various brand designs and the integration of advanced technology (Wi-Fi, sensor, intelligent function, and remote control).
- Global Support:Full documentation, warranty and direct technical support from simple functions to complex repairs.
Selecting LingKey will guarantee that your refrigerator PCB solutions keep pace with the latest smart-control technology, reliability requirements, and energy-saving design trends.
Frequently Asked Questions About Refrigerator PCBs
What is the role of refrigerator PCBs in modern home appliances?
How are PCB boards usually affected by power surges or voltage fluctuations?
Where is the refrigerator circuit board typically located?
Can I use third-party PCB replacement parts?
What maintenance helps extend the lifespan of my refrigerator PCB?
Conclusion
The refrigerator PCB is the core control node of the modern refrigeration system, which combines sensors, power control modules, and intelligent algorithms to achieve stable cooling performance and energy-saving.
Refrigerators are becoming smarter, more connected, and more energy-efficient, so the control board quality is increasing more and more. From precise control of temperature and adaptive defrosting to Wi-Fi connectivity and remote diagnostics, the PCB reliability has a direct impact on the performance of the entire appliance.
At LingKey, we have more than 10 years experience in producing high quality refrigerator PCB/smart appliance control board. With advanced multi-layer PCB technology, rigorous quality standards, and dedicated engineer support, LingKey enables global appliance brands to realize stable performance, improved durability and future-ready IOT integration.
LingKey is your best choice for the development of next generation smart refrigerator or the procurement of dependable replacement control boards. With you Whether you are developing the next-generation smart refrigerator or sourcing reliable replacement control boards, working with LingKey means your refrigeration systems are designed for long-term reliability, safety compliance, and intelligent performance.
